So far, your HTTP API has one stage ($default) and one URL (the auto-generated execute-api endpoint). That works for development, but production needs more: a custom domain name that matches your frontend, separate environments for development and production, and a URL that doesn’t change when you recreate the API. This lesson covers all three.

If you want AWS’s official version of the custom-domain behavior while you read, the HTTP API custom domain guide is the canonical reference.

Stages: Environments for Your API

A stage is a named deployment target for your API. Think of it like environment branches—dev, staging, prod—each with its own URL and potentially its own configuration. The $default stage you’ve been using is the simplest: auto-deploy is enabled, changes take effect immediately, and there’s no stage prefix in the URL.

The $default Stage

The $default stage is created automatically when you create an HTTP API. It has two special properties:

1. Auto-deploy—every change to routes, integrations, or configuration is deployed instantly.
2. No stage prefix—the URL is https://{api-id}.execute-api.{region}.amazonaws.com/items, not https://{api-id}.execute-api.{region}.amazonaws.com/prod/items.

For many applications, the $default stage is all you need. If you’re building a single API for a single frontend, there’s no reason to create additional stages. Use environment variables on your Lambda function to handle environment-specific behavior (like pointing to different databases).

Creating Named Stages

If you want separate, isolated environments—a dev stage where you test changes and a prod stage where stable code runs—you can create named stages:

aws apigatewayv2 create-stage \
  --api-id abc123def4 \
  --stage-name prod \
  --region us-east-1 \
  --output json

{
  "AutoDeploy": false,
  "CreatedDate": "2026-03-18T12:00:00+00:00",
  "DefaultRouteSettings": {
    "DetailedMetricsEnabled": false
  },
  "StageName": "prod"
}

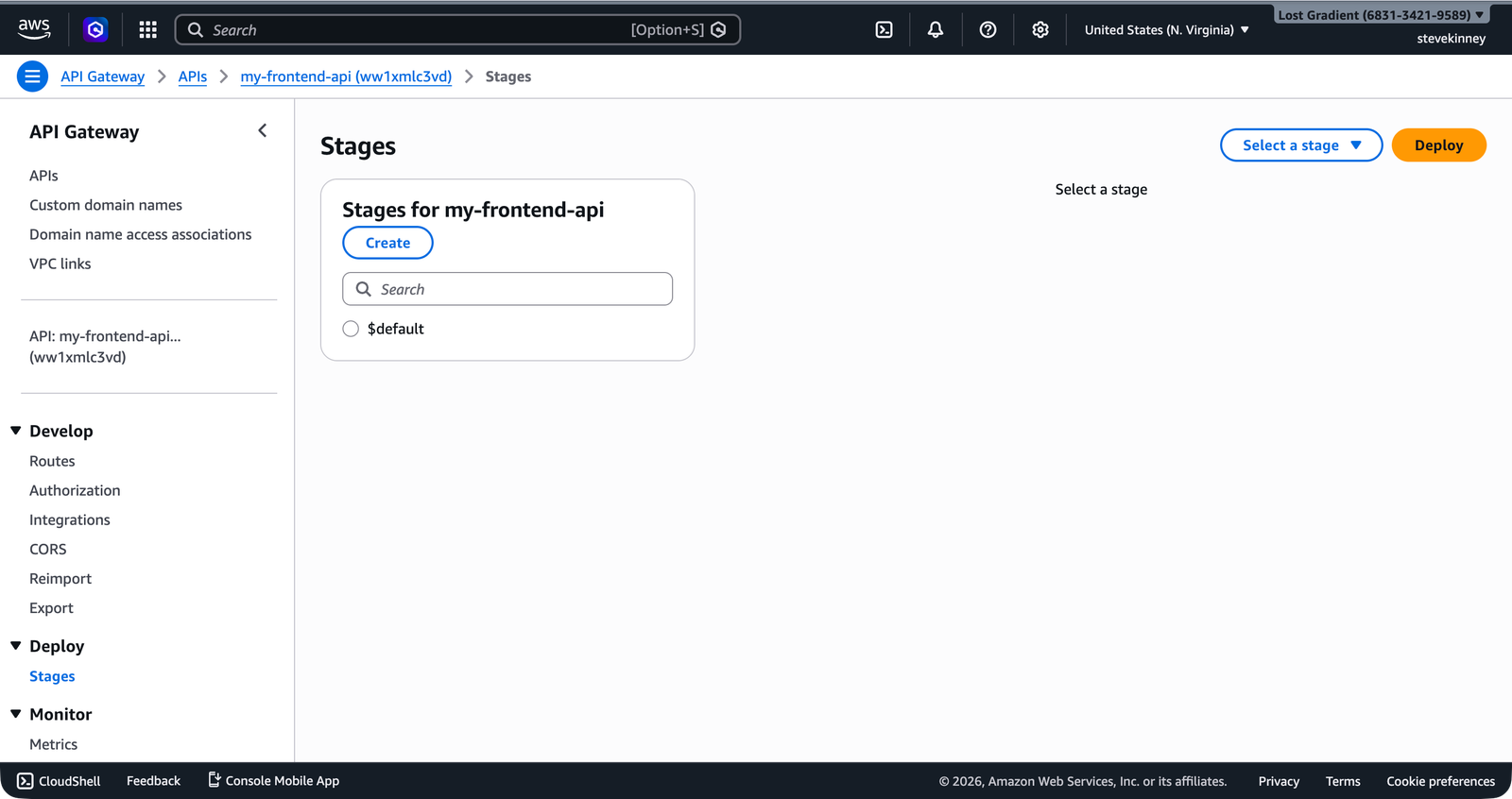

In the console, the Stages section in the left navigation shows all stages for the API. Clicking a stage reveals its invoke URL and deployment settings.

Named stages don’t auto-deploy. You need to create a deployment and associate it with the stage:

aws apigatewayv2 create-deployment \
  --api-id abc123def4 \
  --stage-name prod \
  --region us-east-1 \
  --output json

Named stages include the stage name in the URL: https://abc123def4.execute-api.us-east-1.amazonaws.com/prod/items. This prefix gets stripped before the request reaches your Lambda handler—event.requestContext.http.path still shows /items, not /prod/items.

You can enable auto-deploy on a named stage if you want the same behavior as $default:

aws apigatewayv2 update-stage \
  --api-id abc123def4 \
  --stage-name prod \
  --auto-deploy \
  --region us-east-1 \
  --output json

Stage Variables

Stages can have variables—key-value pairs that you access from your Lambda handler through the event object:

aws apigatewayv2 update-stage \
  --api-id abc123def4 \
  --stage-name prod \
  --stage-variables '{"TABLE_NAME":"my-frontend-app-data","LOG_LEVEL":"warn"}' \
  --region us-east-1 \
  --output json

In your handler, stage variables are accessible at event.stageVariables:

const tableName = event.stageVariables?.TABLE_NAME ?? 'my-frontend-app-data-dev';

Custom Domain Names

The auto-generated URL (https://abc123def4.execute-api.us-east-1.amazonaws.com) works but isn’t something you want in production. Your frontend should call https://api.example.com, not an opaque AWS-generated hostname. Custom domain names give you a stable, branded URL that persists even if you recreate the API.

Prerequisites

Before you create a custom domain name, you need:

1. A domain you control—managed through Route 53 or any DNS provider.
2. An ACM certificate covering the domain—created in the same region as your API (for HTTP APIs, that’s the region where the API lives, unlike CloudFront which requires us-east-1). You set up ACM certificates in Attaching an SSL Certificate.

Creating the Custom Domain

aws apigatewayv2 create-domain-name \
  --domain-name api.example.com \
  --domain-name-configurations \
    CertificateArn=arn:aws:acm:us-east-1:123456789012:certificate/abcd-1234-efgh-5678 \
  --region us-east-1 \
  --output json

{
  "DomainName": "api.example.com",
  "DomainNameConfigurations": [
    {
      "ApiGatewayDomainName": "d-abc123.execute-api.us-east-1.amazonaws.com",
      "CertificateArn": "arn:aws:acm:us-east-1:123456789012:certificate/abcd-1234-efgh-5678",
      "DomainNameStatus": "AVAILABLE",
      "EndpointType": "REGIONAL",
      "SecurityPolicy": "TLS_1_2"
    }
  ]
}

The response includes an ApiGatewayDomainName—this is the target you need for your DNS record.

Creating the API Mapping

An API mapping connects your custom domain to a specific API and stage. This tells API Gateway: “when a request arrives at api.example.com, route it to this API on this stage.”

aws apigatewayv2 create-api-mapping \
  --domain-name api.example.com \
  --api-id abc123def4 \
  --stage '$default' \
  --region us-east-1 \
  --output json

{
  "ApiId": "abc123def4",
  "ApiMappingId": "mapping123",
  "Stage": "$default"
}

You can also use the --api-mapping-key parameter to map a path prefix. For example, mapping with --api-mapping-key v1 makes your API available at api.example.com/v1/items instead of api.example.com/items. That’s useful for API versioning.

Creating the DNS Record

Point your custom domain to the API Gateway domain name. If you use Route 53, create an A record with an alias target:

aws route53 change-resource-record-sets \
  --hosted-zone-id Z1234567890ABC \
  --change-batch '{
    "Changes": [
      {
        "Action": "CREATE",
        "ResourceRecordSet": {
          "Name": "api.example.com",
          "Type": "A",
          "AliasTarget": {
            "DNSName": "d-abc123.execute-api.us-east-1.amazonaws.com",
            "HostedZoneId": "Z1UJRXOUMOOFQ8",
            "EvaluateTargetHealth": false
          }
        }
      }
    ]
  }' \
  --region us-east-1 \
  --output json

The DNSName is the ApiGatewayDomainName from the create-domain-name response. The HostedZoneId is the API Gateway service’s hosted zone for your region—this is a fixed value per region, not your domain’s hosted zone. For regional API Gateway endpoints in us-east-1, the Route 53 hosted zone ID is Z1UJRXOUMOOFQ8.

If you use an external DNS provider (not Route 53), create a CNAME record pointing api.example.com to the ApiGatewayDomainName value. Recall the difference between alias records and CNAME records from Alias Records vs. CNAME Records—the alias record is preferred when using Route 53 because it supports the zone apex and doesn’t incur additional DNS lookup cost.

Updating CORS for Your Custom Domain

After setting up a custom domain, update your CORS configuration to include the new origin your frontend will use. If your frontend calls api.example.com and your site runs on example.com:

aws apigatewayv2 update-api \
  --api-id abc123def4 \
  --cors-configuration \
    AllowOrigins="https://example.com","http://localhost:3000" \
    AllowMethods="GET","POST","PUT","DELETE" \
    AllowHeaders="Content-Type","Authorization" \
    MaxAge=86400 \
  --region us-east-1 \
  --output json

Common Mistakes

Using the wrong certificate region. For HTTP APIs, the ACM certificate must be in the same region as the API. This is different from CloudFront, which requires certificates in us-east-1 regardless of where the distribution runs.

Forgetting the API mapping. Creating a custom domain name isn’t enough—you also need an API mapping to connect the domain to a specific API and stage. Without the mapping, requests to the custom domain return 403.

Stage prefix confusion. Named stages add a prefix to the execute-api URL, but custom domains with API mappings don’t. If your stage is prod and your custom domain maps to it, requests to api.example.com/items route correctly—you don’t need api.example.com/prod/items.

Your API is deployed, routable, and has a proper domain name. But it’s wide open—anyone with the URL can call any endpoint. The next lesson covers adding authentication to your API routes, so that only authorized users can access your endpoints.
