Steve Kinney

Exercise 5: TypeScript References

What You’re Doing

TypeScript currently checks each package independently with no incremental checking across package boundaries. Changing a type in @pulse/shared forces a full recheck of every package that imports it. You’re going to add composite: true and references arrays to each package’s tsconfig.json so TypeScript can track cross-package dependencies and skip rechecking packages whose inputs haven’t changed.

Why It Matters

In a monorepo with 5 packages, a full typecheck takes a few seconds. In a monorepo with 50 packages, it takes minutes. TypeScript’s project references feature (the composite + references combination) enables incremental compilation: TypeScript generates .tsbuildinfo files that record what was checked and what the results were. On the next run, it only rechecks packages whose source files or upstream declaration files have changed. This is the difference between a typecheck that blocks your workflow and one you barely notice.

Prerequisites

  • Node.js 20+
  • pnpm 9+

Setup

You should be continuing from where Exercise 4 left off. If you need to catch up:

git checkout 04-typescript-start
pnpm install

Measure the Baseline

Run the typecheck to see how long it takes without project references.

Run the typecheck across all packages:

pnpm turbo typecheck

Note the total time. Every package runs tsc --noEmit independently. There is no incremental state — each run starts from scratch.

tsc --noEmit and tsc --build

tsc --noEmit runs the type checker against a single project and reports errors, but produces no output files — no .js, no .d.ts, no .tsbuildinfo. It is a one-shot validation pass that starts from scratch every time. tsc --build (or tsc -b) is project-aware and incremental: it reads the references array in tsconfig.json, builds projects in dependency order, generates declaration files and .tsbuildinfo metadata, and on subsequent runs skips any project whose inputs have not changed. The key difference is that --build understands the relationship between projects in a monorepo, while --noEmit treats each invocation as an isolated type check with no memory of previous runs. You will switch from --noEmit to --build later in this exercise to unlock incremental cross-package type checking.

Run it again:

pnpm turbo typecheck

Turborepo caches the result, so the second run is fast. But this is Turborepo’s cache, not TypeScript’s. If you change a type in @pulse/shared, Turborepo invalidates the cache for every downstream package and TypeScript rechecks them all from scratch.

Turborepo caching vs. TypeScript incremental builds

These are complementary, not redundant. Turborepo caches task-level results — if the inputs to @pulse/analytics:typecheck haven’t changed, it replays the result. But when inputs do change, Turborepo runs the full typecheck command from scratch. TypeScript’s incremental builds (via .tsbuildinfo) cache at a finer grain — individual file-level type information. Even when Turborepo decides a typecheck needs to re-run, TypeScript can skip files within that package that haven’t changed. Together, they minimize work at two different levels.

Checkpoint

You’ve measured the baseline typecheck time. Every package checks independently with no incremental state.

How Project References Work

TypeScript project references create a build graph that mirrors your package dependencies. Each package generates .d.ts declaration files that downstream packages read instead of re-parsing source. When an upstream package’s declarations haven’t changed, downstream packages skip their recheck entirely.

graph TD
    Shared["@pulse/shared\ncomposite → .d.ts + .tsbuildinfo"]
    UI["@pulse/ui\nreferences: shared"]
    Analytics["@pulse/analytics\nreferences: ui, shared"]
    Users["@pulse/users\nreferences: ui, shared"]
    Dashboard["apps/dashboard\nreferences: all packages"]

    Dashboard --> Analytics
    Dashboard --> Users
    Dashboard --> UI
    Dashboard --> Shared
    Analytics --> UI
    Analytics --> Shared
    Users --> UI
    Users --> Shared
    UI --> Shared

Add composite: true to Each Package

The composite flag tells TypeScript that this project is part of a larger build and should generate the metadata needed for incremental compilation.

Open packages/shared/tsconfig.json. It should look something like:

packages/shared/tsconfig.json
{
  "extends": "../../tsconfig.base.json",
  "compilerOptions": {
    "outDir": "./dist",
    "rootDir": "./src"
  },
  "include": ["src"]
}

Add "composite": true and "declaration": true to compilerOptions:

packages/shared/tsconfig.json
{
  "extends": "../../tsconfig.base.json",
  "compilerOptions": {
    "composite": true,
    "declaration": true,
    "outDir": "./dist",
    "rootDir": "./src",
Note These two fields enable incremental cross-package type checking.  },
  "include": ["src"],
}

composite: true requires declaration: true

When a package is composite, TypeScript generates .d.ts declaration files alongside its output. Downstream packages read these declarations instead of re-parsing the source files. This is what makes incremental cross-package checking possible — TypeScript compares the current declaration output against the previous run’s .tsbuildinfo and only rechecks if the declarations changed. Without declaration: true, TypeScript has no stable artifact to compare against.

Declaration files

A .d.ts file contains the type signatures of every exported function, class, interface, and variable, but no implementation code — no function bodies, no expressions, no runtime logic. When TypeScript type-checks a file that imports from another package, it reads the declaration file instead of re-parsing and re-analyzing the full source code. This is dramatically faster because declaration files are smaller and already fully resolved — no type inference needed. In a monorepo with composite: true, TypeScript generates these declaration files automatically and uses them as the “contract” between projects: if a declaration file has not changed since the last build, downstream projects can skip rechecking entirely.

The "composite": true and "declaration": true lines are the only changes—everything else in each tsconfig.json stays the same.

Repeat for every package. Add "composite": true and "declaration": true to:

  • packages/ui/tsconfig.json
  • packages/analytics/tsconfig.json
  • packages/users/tsconfig.json
  • apps/dashboard/tsconfig.json

composite also enforces stricter project hygiene

When you enable it, TypeScript requires that every file matched by include is actually part of the compilation — no stray files. It also requires rootDir to be set so declaration file paths are predictable. If you see errors about files not being included in the compilation, check your include patterns. This strictness is intentional: it ensures each project has well-defined boundaries, which is exactly what you want in a monorepo.

Add references Arrays

References tell TypeScript which other projects a package depends on. This mirrors the dependency graph in your package.json files.

packages/shared/tsconfig.json needs no references. It’s a leaf package with no internal dependencies:

packages/shared/tsconfig.json
{
  "extends": "../../tsconfig.base.json",
  "compilerOptions": {
    "composite": true,
    "declaration": true,
    "outDir": "./dist",
    "rootDir": "./src"
  },
  "include": ["src"]
}

packages/ui/tsconfig.json references @pulse/shared:

packages/ui/tsconfig.json
{
  "extends": "../../tsconfig.base.json",
  "compilerOptions": {
    "composite": true,
    "declaration": true,
    "outDir": "./dist",
    "rootDir": "./src",
  },
  "include": ["src"],
  "references": [{ "path": "../shared" }],
Note Declares the TypeScript-level dependency on @pulse/shared.}

packages/analytics/tsconfig.json references @pulse/ui and @pulse/shared:

packages/analytics/tsconfig.json
{
  "extends": "../../tsconfig.base.json",
  "compilerOptions": {
    "composite": true,
    "declaration": true,
    "outDir": "./dist",
    "rootDir": "./src",
  },
  "include": ["src"],
  "references": [
    { "path": "../ui" },
    { "path": "../shared" },
  ],
}Note Mirror the dependencies from package.json so tsc builds in the right order.

packages/users/tsconfig.json gets the same references as analytics:

packages/users/tsconfig.json
{
  "extends": "../../tsconfig.base.json",
  "compilerOptions": {
    "composite": true,
    "declaration": true,
    "outDir": "./dist",
    "rootDir": "./src",
  },
  "include": ["src"],
  "references": [
    { "path": "../ui" },
    { "path": "../shared" },
  ],
}Note Same references as analytics — both feature packages depend on ui and shared.

apps/dashboard/tsconfig.json references all packages:

apps/dashboard/tsconfig.json
{
  "extends": "../../tsconfig.base.json",
  "compilerOptions": {
    "composite": true,
    "declaration": true,
    "outDir": "./dist",
    "rootDir": "./src",
  },
  "include": ["src"],
  "references": [
    { "path": "../../packages/analytics" },
    { "path": "../../packages/users" },
    { "path": "../../packages/ui" },
    { "path": "../../packages/shared" },
  ],
}

References must match your actual dependency graph

If packages/analytics/package.json lists @pulse/ui as a dependency, then packages/analytics/tsconfig.json must include { "path": "../ui" } in its references. A mismatch means TypeScript either misses a dependency (leading to stale type information) or declares one that doesn’t exist (leading to unnecessary rechecks). The references array is the TypeScript-level mirror of your package.json dependencies.

Create a Root Build Configuration

Create or update tsconfig.json at the repository root so tsc --build knows about all projects:

tsconfig.json
{
  "files": [],
  "references": [
    { "path": "packages/shared" },
    { "path": "packages/ui" },
    { "path": "packages/analytics" },
    { "path": "packages/users" },
    { "path": "apps/dashboard" },
  ],
Note No files to compile here — this is just an entry point for tsc --build.}

"files": [] is intentional

The root tsconfig.json doesn’t compile any files itself — it only acts as an entry point that tells tsc --build which projects exist. The files: [] prevents TypeScript from trying to compile anything in the root directory. Each project’s own tsconfig.json (with its include pattern) determines what gets compiled.

Run tsc --build

Run the TypeScript build from the root:

npx tsc --build

TypeScript processes each project in dependency order: @pulse/shared first (no dependencies), then @pulse/ui, then @pulse/analytics and @pulse/users (which can run in parallel since neither depends on the other), then apps/dashboard last.

Check for .tsbuildinfo files:

ls packages/shared/*.tsbuildinfo
ls packages/ui/*.tsbuildinfo
ls packages/analytics/*.tsbuildinfo

Each package now has a .tsbuildinfo file that records the compilation state.

Run tsc --build again:

npx tsc --build

The second run should be noticeably faster. TypeScript reads each .tsbuildinfo file, compares it against the current source, and skips projects where nothing has changed.

Checkpoint

tsc --build completes successfully. Each package has a .tsbuildinfo file. The second run is faster because TypeScript uses incremental state.

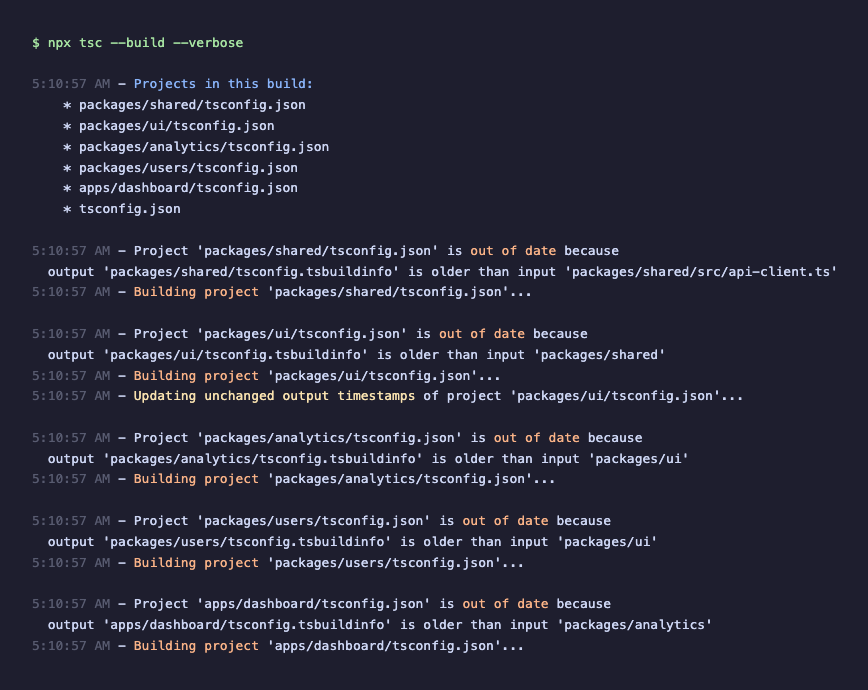

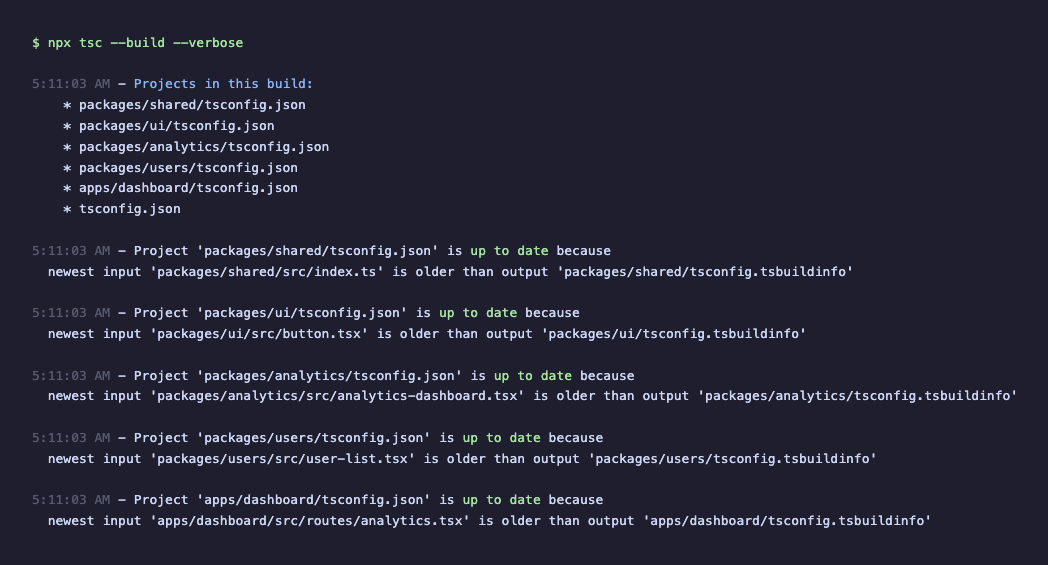

First tsc --build run processing all projects Subsequent tsc --build run with incremental checking

Test Incremental Rechecking

When you change a type in @pulse/shared, the cascade flows through the reference graph. Only packages with a dependency path to the changed package get rechecked — everything else is skipped.

flowchart TD
    Change["Change User interface\nin @pulse/shared"]
    Shared["@pulse/shared\n.d.ts output changes"]
    UI["@pulse/ui\nreads shared .d.ts"]
    Analytics["@pulse/analytics\nreads shared + ui .d.ts"]
    Users["@pulse/users\nreads shared + ui .d.ts"]
    Dashboard["apps/dashboard\nreads all .d.ts"]

    Change --> Shared
    Shared -->|".d.ts changed"| UI
    Shared -->|".d.ts changed"| Analytics
    Shared -->|".d.ts changed"| Users
    UI --> Dashboard
    Analytics --> Dashboard

Open packages/shared/src/types.ts and add a new field to the User interface:

packages/shared/src/types.ts
export interface User {
  id: string;
  name: string;
  email: string;
  role: 'admin' | 'member' | 'viewer';
  avatar?: string;
  createdAt: string;
  department?: string;
}Note Adding a new exported field changes the .d.ts output and triggers downstream rechecks.

Run tsc --build and watch the output:

npx tsc --build --verbose

The --verbose flag shows which projects are being checked and which are being skipped. You should see:

  • @pulse/shared — rechecked (source changed)
  • @pulse/ui — rechecked (depends on @pulse/shared, whose declarations changed)
  • @pulse/analytics — rechecked (same reason)
  • @pulse/users — rechecked (same reason)
  • @pulse/dashboard — rechecked (depends on everything)

Why everything rechecks when you change a shared type

The User interface is exported from @pulse/shared, which means the generated .d.ts file changes. Every project that references @pulse/shared reads these declarations, so their input hash changes too. This is correct — a type change in shared code could introduce errors anywhere. But if you change a non-exported implementation detail in @pulse/shared (like a private helper function), the declarations don’t change, and downstream projects skip the recheck entirely.

Now make a change that doesn’t affect the public API. Open packages/ui/src/button.tsx and add a comment:

// Internal styling update

Run tsc --build --verbose again. This time, only @pulse/ui and its dependents should recheck. @pulse/shared is skipped because it didn’t change.

Revert both changes when you’re done.

Checkpoint

Changing a type in @pulse/shared causes all downstream packages to recheck. Changing an internal file in @pulse/ui only rechecks @pulse/ui and its dependents, not @pulse/shared. Incremental checking works.

Solution

If you need to catch up, the completed state for this exercise is available on the 05-linting-start branch:

git checkout 05-linting-start
pnpm install

Stretch Goals

  • Measure the speedup: Add 10 more interfaces to @pulse/shared/src/types.ts, run tsc --build to populate the cache, then change one interface and run tsc --build --verbose again. With more projects and more types, the incremental speedup becomes more dramatic.
  • declarationMap: Add "declarationMap": true to compilerOptions. This generates .d.ts.map files that let your editor “Go to Definition” on a type from @pulse/shared and jump to the actual .ts source, not the .d.ts output.
  • Path aliases: Configure path aliases in tsconfig.base.json so @pulse/shared resolves cleanly without relative paths. Check that both tsc --build and Vite resolve the aliases correctly.

What’s Next

TypeScript now checks incrementally across package boundaries. But nothing prevents code from violating those boundaries — you can still import internal files from another package, and there’s no enforcement of the dependency graph at the lint level. In the next exercise, you’ll configure eslint-plugin-boundaries to catch architectural violations before they reach code review.
