Steve Kinney

Exercise 6: Architectural Linting

What You’re Doing

Nothing currently stops packages/analytics from importing the internal UserList component directly from @pulse/users/src/user-list, bypassing the package’s public API. Nothing stops the @pulse/ui package from importing application-level code from apps/dashboard. These violations compile fine and pass all existing checks. You’re going to configure eslint-plugin-boundaries to encode the intended dependency graph as lint rules so these violations are caught automatically.

Why It Matters

In a monorepo, the package dependency graph is your architecture. Packages at the bottom (like @pulse/shared) should never import from packages above them (like apps/dashboard). Feature packages shouldn’t reach into each other’s internals. But without enforcement, developers take shortcuts — a quick internal import here, a circular dependency there — and the architecture erodes. eslint-plugin-boundaries turns architectural intent into automated checks that run on every save, every commit, and every CI run.

Prerequisites

  • Node.js 20+
  • pnpm 9+

Setup

You should be continuing from where Exercise 5 left off. If you need to catch up:

git checkout 06-linting-start
pnpm install

Demonstrate the Problem

Before adding any rules, prove that the architecture can be violated without consequence.

Open packages/analytics/src/analytics-dashboard.tsx and add this import at the top:

packages/analytics/src/analytics-dashboard.tsx
import { UserList } from '@pulse/users/src/user-list';

Save the file. TypeScript may or may not complain depending on whether you completed Exercise 5 (TypeScript References). If you added project references, TypeScript will reject this import because @pulse/users is not in @pulse/analytics’s references. If you didn’t, the import resolves through the workspace. Either way, continue — the point is that the linter has no opinion about this import.

Run the linter:

pnpm turbo lint

You will see a @typescript-eslint/no-unused-vars error because the imported symbol is never used — this comes from TypeScript ESLint’s recommended rules, not from eslint-plugin-boundaries. There are no boundaries errors. That is the point: ESLint currently has no opinion about cross-package architectural violations. Ignore the unused-vars error for now; you’ll remove the import shortly.

Now try an even worse violation. Open packages/shared/src/api-client.ts and add:

packages/shared/src/api-client.ts
import { AnalyticsDashboard } from '@pulse/analytics';

This creates a circular dependency — @pulse/shared is importing from @pulse/analytics, which itself depends on @pulse/shared. TypeScript doesn’t catch this because workspace resolution handles it. The build might even succeed depending on evaluation order. But it’s architecturally wrong.

Circular dependencies

First, initialization order becomes unpredictable: when module A imports module B and module B imports module A, one of them will see an incomplete (partially initialized) version of the other at import time, leading to subtle undefined errors that only manifest at runtime and depend on which module the bundler happens to evaluate first. Second, bundlers struggle to tree-shake circular dependency graphs because they cannot determine which exports are truly unused — if A references B and B references A, removing either one might break the other, so the bundler conservatively keeps everything, inflating bundle size. Third, circular dependencies make the system harder to reason about: you cannot understand module A without understanding module B, and vice versa, which means every change to either module requires reasoning about both. In a monorepo, a circular dependency between packages is especially dangerous because it defeats the purpose of having separate packages in the first place — they are no longer independently understandable or deployable.

Remove both imports. You’re about to make the linter catch them.

Why TypeScript doesn’t catch architectural violations

TypeScript’s job is type correctness, not architectural correctness. If a file exists and exports a type-compatible value, TypeScript considers the import valid. It doesn’t know or care that @pulse/shared shouldn’t import from @pulse/analytics — that’s an architectural constraint, not a type constraint. This is why you need a separate tool (ESLint with boundaries) to enforce the dependency graph.

Checkpoint

You’ve confirmed that cross-package internal imports and circular dependencies compile and lint without errors. The architecture is unenforced.

The Allowed Dependency Graph

The boundary rules encode a directed graph of allowed imports. Element types define categories of code, and rules define which types can import from which. Arrows represent allowed import directions — anything not shown is denied by default.

graph TD
    Test["test"]
    App["app"]
    Mock["mock"]
    Package["package"]

    Test -->|"allowed"| App
    Test -->|"allowed"| Package
    Test -->|"allowed"| Mock
    App -->|"allowed"| Package
    App -->|"allowed"| Mock
    Mock -->|"allowed"| Package
    Package -->|"allowed"| Package

    App x-.-x|"denied"| App
    Package x-.-x|"denied"| App
    Package x-.-x|"denied"| Mock

Configure Element Types

Open the root eslint.config.js. It should have basic ESLint configuration but no boundaries rules. You’re going to add the boundaries plugin and define the element types that make up your architecture.

Import the boundaries plugin at the top of eslint.config.js:

eslint.config.js
import boundaries from 'eslint-plugin-boundaries';

Add a configuration object to eslint.config.js with the plugin and element type settings:

eslint.config.js
export default [
  // ... existing config entries (keep these in place)
  {
    plugins: {
      boundaries,
    },
    settings: {
      'boundaries/elements': [
        { type: 'app', pattern: 'apps/*' },
        { type: 'package', pattern: 'packages/*' },
        { type: 'mock', pattern: 'mocks' },
        { type: 'test', pattern: 'tests/*' },
      ],
Note Element types define the architectural vocabulary for your boundary rules.      'boundaries/ignore': ['**/*.test.*', '**/*.spec.*'],
    },
  },
];

Then add the import resolver configuration to the same object in eslint.config.js so the boundaries plugin can map @pulse/analytics to packages/analytics. Without this, the plugin can’t determine which element type an import belongs to and silently skips enforcement:

eslint.config.js
{
  plugins: {
    boundaries,
  },
  settings: {
    "import/resolver": {
      typescript: {
        project: "./tsconfig.base.json",
      },
    },
Note The resolver maps @pulse/analytics to packages/analytics so boundaries can classify imports.    "boundaries/elements": [
      { type: "app", pattern: "apps/*" },
      { type: "package", pattern: "packages/*" },
      { type: "mock", pattern: "mocks" },
      { type: "test", pattern: "tests/*" },
    ],
    "boundaries/ignore": ["**/*.test.*", "**/*.spec.*"],
  },
}

The import resolver is required

The eslint-import-resolver-typescript package resolves workspace package specifiers like @pulse/analytics to their actual file paths (e.g., packages/analytics/src/index.ts). Without it, the boundaries plugin sees an import from @pulse/analytics but can’t map it to the packages/* element type, so it skips the check entirely. This is a silent failure — you’ll think boundaries are enforced when they’re not.

What element types represent

Each entry in boundaries/elements defines a category of code in your repository. The pattern is a glob that matches directory paths — apps/* matches apps/dashboard and apps/legacy, classifying them as type "app". The packages/* pattern matches packages/analytics, packages/ui, etc., classifying them as type "package". These types are the vocabulary you use in the boundary rules: “an app can import from a package” or “a package cannot import from an app.”

Why ignore test files

The boundaries/ignore setting excludes test files from boundary enforcement. Tests often need to import from multiple layers — a test for @pulse/analytics might import MSW handlers from mocks/ and fixtures from tests/. Enforcing production-time boundaries on test code would create friction without meaningful architectural benefit.

Define Allowed Dependencies

Add the boundaries/element-types rule to the same configuration object in eslint.config.js to define which element types are allowed to import from which:

eslint.config.js
{
  plugins: {
    boundaries,
  },
  settings: {
    "import/resolver": {
      typescript: {
        project: "./tsconfig.base.json",
      },
    },
    "boundaries/elements": [
      { type: "app", pattern: "apps/*" },
      { type: "package", pattern: "packages/*" },
      { type: "mock", pattern: "mocks" },
      { type: "test", pattern: "tests/*" },
    ],
    "boundaries/ignore": ["**/*.test.*", "**/*.spec.*"],
  },
  rules: {
    "boundaries/element-types": [
      "error",
      {
        default: "disallow",
        rules: [
          { from: "app", allow: ["package", "mock"] },
          { from: "package", allow: ["package"] },
          { from: "test", allow: ["app", "package", "mock"] },
          { from: "mock", allow: ["package"] },
        ],
      },
    ],
  },
}

What Each Rule Means

  • default: "disallow": If no rule explicitly allows an import, it’s an error. This is deny-by-default, which is the safe default for architectural enforcement.

  • from: "app", allow: ["package", "mock"]: Applications can import from packages and mocks. They cannot import from other apps (preventing coupling between apps/dashboard and apps/legacy).

  • from: "package", allow: ["package"]: Packages can import from other packages. They cannot import from apps or mocks. This prevents @pulse/ui from depending on apps/dashboard, which would create an upward dependency.

  • from: "test", allow: ["app", "package", "mock"]: Tests can import from anything. They need access to apps (to test them), packages (to use them), and mocks (for test data).

  • from: "mock", allow: ["package"]: Mocks can import from packages (to use their types) but not from apps.

The default: "disallow" setting is critical

Without it, any import not covered by a rule would silently pass. With it, you get fail-closed behavior: if someone adds a new element type (say, a scripts/ directory) without updating the boundary rules, any import from or to that type will be flagged. This forces you to explicitly decide what the new type is allowed to access.

Test the Element Type Rules

Import resolution matters

The boundaries plugin relies on eslint-import-resolver-typescript to map package specifiers (like @pulse/analytics) to file paths. In pnpm workspaces with strict resolution, the resolver can only resolve packages that are declared as dependencies. This means if @pulse/shared does not list @pulse/analytics in its package.json, the resolver can’t map that import — and the boundaries plugin silently skips the check. The steps below describe the intended behavior. You may not see the expected lint errors depending on your resolver configuration. Even when the errors don’t appear for these synthetic test cases, the rules still provide value by catching violations where the import resolver can resolve the path.

Try adding an architectural violation. Open packages/shared/src/api-client.ts and add:

packages/shared/src/api-client.ts
import { AnalyticsDashboard } from '@pulse/analytics';

Run the linter:

pnpm turbo lint

With proper import resolution, this would produce an error about circular dependencies — @pulse/shared importing from @pulse/analytics while @pulse/analytics depends on @pulse/shared. The boundaries/element-types rule catches this because default: "disallow" blocks any import the resolver can classify that isn’t explicitly allowed.

Remove that violation, then try another one. Open packages/ui/src/button.tsx and add:

packages/ui/src/button.tsx
import { App } from '@pulse/dashboard/src/app';

Run lint again. A package importing from an app would trigger:

error  Importing elements of type "app" is not allowed
       from elements of type "package"
       boundaries/element-types

Remove the violation.

Checkpoint

The element-type rules are configured. Run pnpm turbo lint and confirm all packages pass with no violations (after removing the test imports).

Lint output showing a boundary violation error

Add the no-private Rule

The element-type rules enforce the dependency graph between packages. But they don’t prevent reaching into a package’s internals. You can still do:

import { StatsBar } from '@pulse/analytics/src/stats-bar';

This bypasses the public API defined in @pulse/analytics/src/index.ts. Add a rule to prevent it.

Add boundaries/no-private to the rules object in eslint.config.js:

eslint.config.js
rules: {
  "boundaries/element-types": [
    "error",
    {
      default: "disallow",
      rules: [
        { from: "app", allow: ["package", "mock"] },
        { from: "package", allow: ["package"] },
        { from: "test", allow: ["app", "package", "mock"] },
        { from: "mock", allow: ["package"] },
      ],
    },
  ],
  "boundaries/no-private": ["error"],
Note Prevents deep imports that bypass a package's public API.},

Test it by opening apps/dashboard/src/routes/analytics.tsx and adding:

apps/dashboard/src/routes/analytics.tsx
import { StatsBar } from '@pulse/analytics/src/stats-bar';

Run lint:

pnpm turbo lint

With proper resolution, this would produce:

error  Importing private elements of "@pulse/analytics" is not allowed.
       Only public entry points can be imported.
       boundaries/no-private

The import from @pulse/analytics (using the public API) works fine. The import from @pulse/analytics/src/stats-bar (bypassing the public API) is considered private because it doesn’t match the package’s declared entry point.

The no-private rule depends on the element pattern configuration

If the boundaries plugin can’t establish a parent-child relationship between @pulse/analytics and the subpath @pulse/analytics/src/stats-bar, the rule may not trigger. The boundaries/entry-point rule (mentioned in Stretch Goals) provides a more robust alternative for enforcing public API boundaries.

Remove the violation.

How no-private determines what’s private

The rule looks at the package’s entry point — the main or exports field in package.json. If the import path doesn’t match a declared entry point, it’s considered private. Since @pulse/analytics only has "main": "./src/index.ts", the only valid import is import { ... } from "@pulse/analytics". Any deeper path like @pulse/analytics/src/stats-bar is private. This is the same boundary you defined architecturally when you chose to export only AnalyticsDashboard from index.ts — now the linter enforces it.

Checkpoint

pnpm turbo lint passes with no violations. Importing from @pulse/analytics works, but importing from @pulse/analytics/src/stats-bar triggers a lint error. The public API boundary is enforced.

Verify the Complete Configuration

Run the full lint pass to make sure everything is clean:

pnpm turbo lint

All packages should pass. The final eslint.config.js should include:

eslint.config.js
import boundaries from 'eslint-plugin-boundaries';

export default [
  // ... existing config entries
  {
    plugins: {
      boundaries,
    },
    settings: {
      'import/resolver': {
        typescript: {
          project: './tsconfig.base.json',
        },
      },
      'boundaries/elements': [
        { type: 'app', pattern: 'apps/*' },
        { type: 'package', pattern: 'packages/*' },
        { type: 'mock', pattern: 'mocks' },
        { type: 'test', pattern: 'tests/*' },
      ],
      'boundaries/ignore': ['**/*.test.*', '**/*.spec.*'],
    },
    rules: {
      'boundaries/element-types': [
        'error',
        {
          default: 'disallow',
          rules: [
            { from: 'app', allow: ['package', 'mock'] },
            { from: 'package', allow: ['package'] },
            { from: 'test', allow: ['app', 'package', 'mock'] },
            { from: 'mock', allow: ['package'] },
          ],
        },
      ],
      'boundaries/no-private': ['error'],
    },
  },
];

Checkpoint

The complete boundary configuration is in place. Apps can import from packages. Packages can import from other packages. No one can import private internals. The architecture is encoded in tooling.

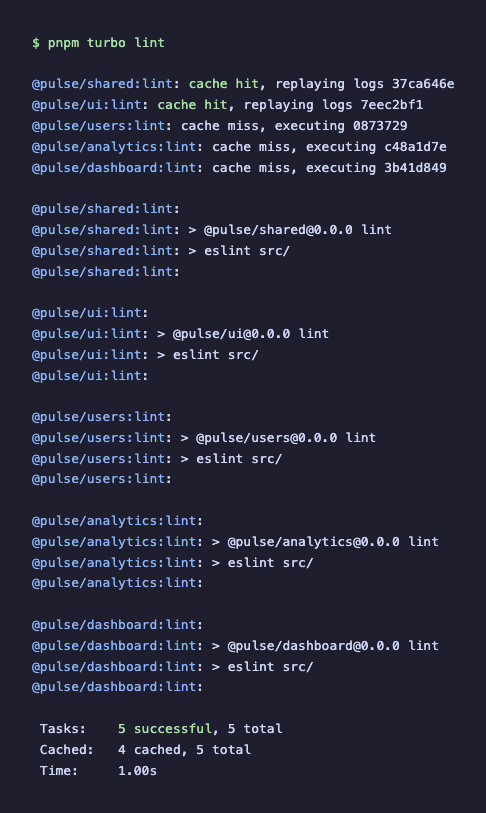

Clean lint output with no boundary violations

Solution

If you need to catch up, the completed state for this exercise is available on the 06-design-system-start branch:

git checkout 06-design-system-start
pnpm install

Stretch Goals

  • Banned external imports: Add an ESLint rule that prevents any package except @pulse/shared from importing lodash directly. All utility usage must go through shared wrappers. This is how you prevent 12 versions of lodash across your monorepo.
  • boundaries/entry-point rule: Configure entry point restrictions so that @pulse/analytics can only be imported via its top-level package name, not via subpaths like @pulse/analytics/src/index.
  • Custom rule for displayName: Write a simple ESLint rule that requires all exported React components to have a displayName property. This helps with debugging in React DevTools and error boundaries.

What’s Next

You have type checking, build caching, and architectural linting all working locally. But none of this runs automatically on pull requests. In the next exercise, you’ll build a GitHub Actions CI pipeline that uses Turborepo for caching and runs typecheck, lint, test, and build on every push.
