Railway is a convenient place to run an always-on Gateway: you don’t manage a server, and volumes keep your state between deploys. A typical Railway deploy, though, gives the Gateway a public URL, and that’s the opposite of what we want for something that can read your files and use your accounts.

This lesson uses stevekinney/openclaw-railway-template, a minimal deployment with no public domain at all. Two Railway services run side by side:

• openclaw runs the Gateway on Railway’s private network.
• tailscale joins your tailnet and forwards traffic to the Gateway.

 Mac app / browser / phone          (devices on your tailnet)
            │
            │  WireGuard (Tailscale)
            ▼
 ┌──────────────── Railway project (private network only) ────────────────┐
 │                                                                        │
 │  tailscale service ── raw TCP forward ──►  openclaw service            │
 │  joins your tailnet                        Gateway on :8080            │
 │  volume: node identity                     volume: /data (all state)   │
 │                                                                        │
 └────────────────────────────────────────────────────────────────────────┘

Why a Separate Tailscale Service?

A few things make Railway different from a VPS:

• Railway containers can’t use the kernel networking that a normal Tailscale install wants, and you can’t run two long-lived processes in one container without a supervisor.
• A Tailscale subnet router would expose every service in your Railway environment to your tailnet.
• Railway’s private hostnames (like openclaw.railway.internal) only resolve inside Railway.

So the tailscale service runs Tailscale in userspace networking mode, joins your tailnet as its own machine named openclaw, and forwards connections across Railway’s private network to the Gateway.

Why raw TCP and not an HTTP proxy

Tailscale Serve can forward in two ways. The obvious one is as an HTTP reverse proxy, but that adds X-Forwarded-* and Tailscale-User-* headers to every request. The Gateway refuses requests carrying those headers unless they come from a proxy it has been told to trust, and the Tailscale container’s private IP changes on every deploy. You’d end up trusting a whole range of Railway’s network, or hitting a Proxy client attribution is required error.

This template forwards raw TCP instead. Bytes pass through untouched, so the Gateway sees an ordinary private-network client with no forwarded claims, and nothing is trusted that could be spoofed. TLS is still handled by Tailscale on port 443, using your tailnet’s real certificate.

Before You Start

You’ll need:

• A Railway account on a paid plan (the volumes are larger than the free tier allows) and the Railway CLI: brew install railway, then railway login.
• A tailnet with MagicDNS and HTTPS Certificates turned on, as described in the previous lesson. Note your tailnet’s DNS name in the admin console under DNS. It looks like tail1234.ts.net.
• An API key for a model provider. The examples use Anthropic.

Step 1: Prepare Your Tailnet’s Access Policy

Do this before anything gets deployed. In the admin console, open Access controls and add a tag, plus a grant that lets only you reach the Gateway. Replace you@example.com with your Tailscale login:

{
  "tagOwners": {
    "tag:openclaw": ["autogroup:admin"],
  },
  "grants": [
    // Only the operator's devices may reach the Gateway, and only its two ports.
    { "src": ["you@example.com"], "dst": ["tag:openclaw"], "ip": ["tcp:443", "tcp:18789"] },
  ],
  "tests": [{ "src": "you@example.com", "accept": ["tag:openclaw:443", "tag:openclaw:18789"] }],
}

Merge this into your existing policy instead of replacing it. If you’d rather not use a tag, see Prefer Not to Tag? in Step 2.

Two things to check:

• If your policy still has the default allow-all rule ("src": ["*"], "dst": ["*:*"]), every member of your tailnet can reach the Gateway. Narrow it.
• The new openclaw machine gets no grants of its own, so even if the Gateway were compromised, it couldn’t open connections to anything else on your tailnet.

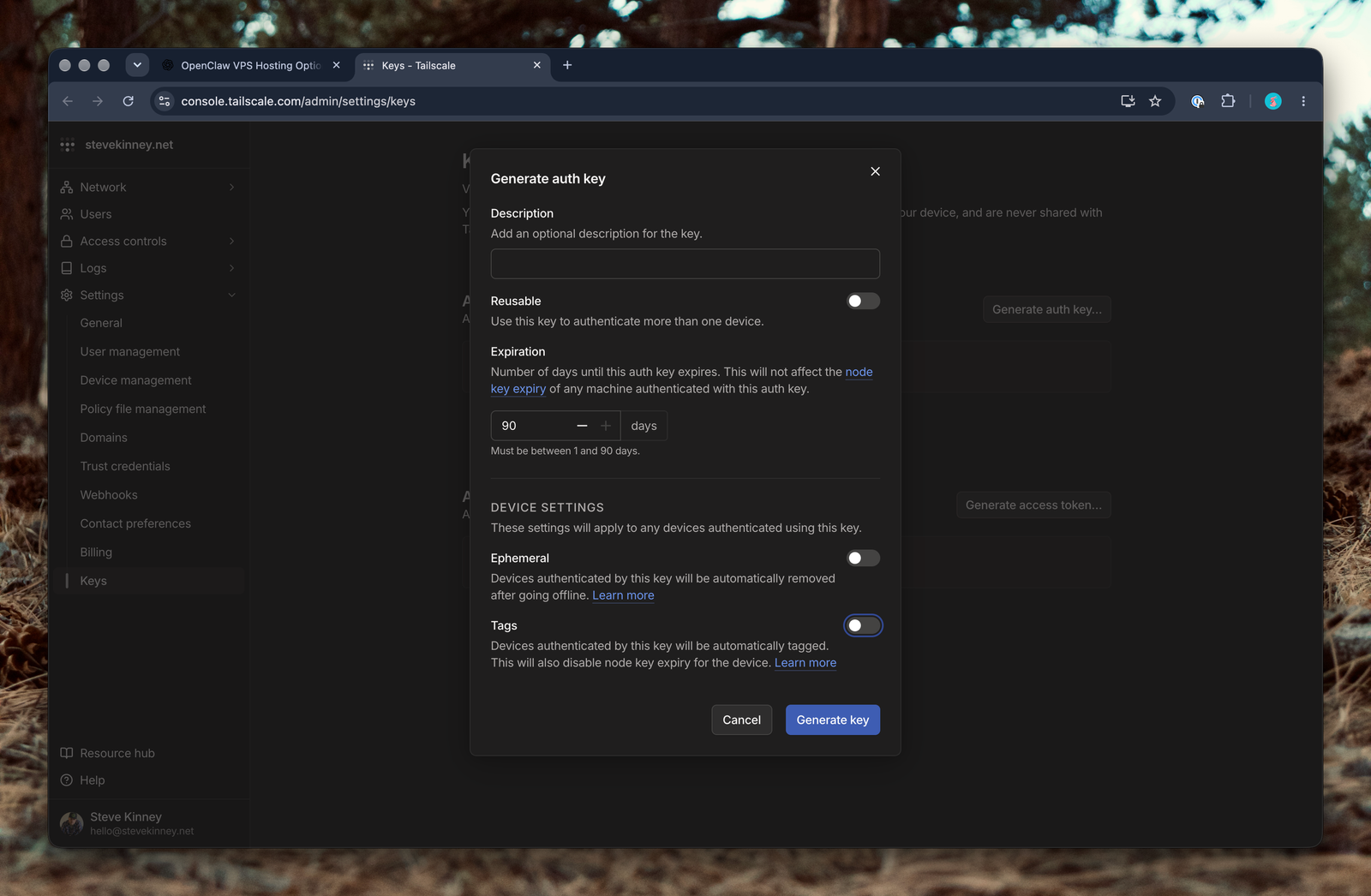

Step 2: Generate an Auth Key

The tailscale service needs a one-time key so it can join your tailnet without anyone logging in by hand. Go to Settings → Keys → Generate auth key.

Set it up like this:

Copy the key when it’s shown. Tailscale won’t show it in full again.

Prefer Not to Tag?

Tagging is recommended, but it isn’t required. If you’d rather not edit your policy’s tagOwners, leave Tags off in the dialog and the node joins as a regular machine owned by your user. Everything else in this lesson works. Three things change:

1. You have to disable key expiry yourself. Untagged nodes expire after 180 days by default, and then the Gateway silently drops off your tailnet. After the machine joins, open openclaw in the admin console and choose Disable key expiry. Tagged nodes skip this step.

2. The Step 1 grant won’t match. It targets tag:openclaw, which an untagged node doesn’t have. Skip the tagOwners block, and once the machine appears, point the grant at it directly:

   {
     "grants": [
       {
         "src": ["you@example.com"],
         "dst": ["<openclaw-tailnet-ip>"],
         "ip": ["tcp:443", "tcp:18789"],
       },
     ],
     "tests": [{ "src": "you@example.com", "accept": ["<openclaw-tailnet-ip>:443"] }],
   }

   You’ll find the IP on the machine’s page in the admin console.

3. The node carries your identity. A tagged node gets only the access your policy grants it, and this one is granted none. An untagged node is you as far as the policy is concerned, so a compromised Gateway container could reach whatever your account can. The template’s documentation doesn’t walk through this case, so treat it as Tailscale’s general behavior rather than something the template guarantees. If your policy is still the default allow-all, that means everything on your tailnet, so narrow it either way.

For a Gateway that can run commands, the tag is cheap insurance. On a small personal tailnet with a tight policy, going without is a reasonable trade.

Step 3: Deploy the Template

Open the OpenClaw Private Gateway template on Railway and fill in two variables:

OPENCLAW_PUBLIC_ORIGIN is the address you’ll connect to. The Gateway also uses it as its list of allowed browser origins. The Gateway token (OPENCLAW_GATEWAY_TOKEN) is generated for you.

Wait for both services to turn green. That takes about four minutes, because the first build pulls a large image. When it finishes, a machine named openclaw shows up in your tailnet’s Machines page.

If you already have a machine called openclaw, Tailscale names the new one openclaw-1. Remove the old one, or set OPENCLAW_PUBLIC_ORIGIN to match the new name.

Step 4: Check the Tailnet Side

From a tailnet device that your policy allows:

tailscale ping openclaw
curl -fsS https://openclaw.<your-tailnet>.ts.net/healthz

You should get a reply from tailscale ping, and curl should print {"ok":true,"status":"live"}. The first HTTPS request can take a few seconds while Tailscale issues the certificate.

Then run the same curl from a device your policy doesn’t allow. It should time out. That’s the access policy doing its job, so check it as carefully as you check the success case.

Finally, open the Railway dashboard and look at each service’s Settings → Networking. There should be no domains and no TCP proxy on either one.

Step 5: Finish Setting Up the Gateway

At this point the Gateway is running, but it doesn’t have a model provider yet. Link the Railway CLI to the project, register an SSH key, and confirm you can reach the container:

railway link
railway ssh keys add --key ~/.ssh/id_ed25519.pub
railway ssh --service openclaw -- openclaw health

The first railway ssh asks you to trust ssh.railway.com. Railway doesn’t publish host-key fingerprints, so you can only accept it the first time.

Add your model provider key. Copy it to the clipboard, then:

pbpaste | tr -d '\n' | railway variable set ANTHROPIC_API_KEY --stdin --service openclaw

When that deploy turns green, run non-interactive onboarding inside the container:

railway ssh --service openclaw -- openclaw onboard --non-interactive --accept-risk --skip-health \
  --mode local --auth-choice apiKey --secret-input-mode ref \
  --gateway-auth token --gateway-token-ref-env OPENCLAW_GATEWAY_TOKEN \
  --gateway-bind lan --skip-channels --no-install-daemon

Onboarding changes a setting that needs a restart. Railway is the supervisor here, so the Gateway exits cleanly and Railway starts it again in about 30 seconds. Then check that the agent answers:

railway ssh --service openclaw -- openclaw agent --agent main --message "Reply with exactly: OK"

For a provider other than Anthropic, set its key variable instead and change --auth-choice. openclaw onboard --help lists the options.

Step 6: Connect Your Devices

Everything uses one address. Use the secure wss:// one:

wss://openclaw.<your-tailnet>.ts.net

There’s also a plaintext fallback at ws://openclaw.<your-tailnet>.ts.net:18789. The traffic is still encrypted by WireGuard inside the tailnet, but prefer wss:// unless your tailnet can’t issue HTTPS certificates.

The macOS app

1. In the menu bar, open Connection….
2. Under OpenClaw runs, choose Remote (another host).
3. Choose Gateway address or setup code and enter the wss:// address.
4. Enter the Gateway token, which you can read from the openclaw service’s variables in Railway.
5. Choose Save connection, then Test.

The first test reports that pairing is required. That’s expected.

Approve the device

Tailnet connections count as remote, so nothing is approved automatically. Approve each pending request from the Gateway:

railway ssh --service openclaw -- openclaw devices list
railway ssh --service openclaw -- openclaw devices approve <requestId>

The Mac app files two requests, one for the operator role and one for the node role. Approve both. It will then ask for permission to expose commands on your Mac, including running shell commands. Read that prompt carefully before approving it. The paired node lesson walks through what you’re agreeing to.

Browsers and phones

• A browser: open https://openclaw.<your-tailnet>.ts.net/ on a tailnet device and sign in with the Gateway token. Each browser profile counts as a separate device, so approve it the same way.
• iOS and Android: with the phone on your tailnet, run railway ssh --service openclaw -- openclaw qr and scan the code in the OpenClaw app. Add --limited to withhold administrative access from the phone. The code contains a short-lived token, so don’t post it anywhere.

Pairing records are stored on the Gateway’s volume, so they survive redeploys.

Step 7: Clean Up

• Drop the auth key. Once the machine has joined, you can delete TS_AUTHKEY from the tailscale service. A used one-time key is useless anyway.

• Check key expiry. If you tagged the key, the node never expires. If you didn’t, disable key expiry on the openclaw machine in the admin console, or it will drop off your tailnet after 180 days.

• Turn on backups. In each service, open Backups and enable daily backups. The openclaw volume holds OAuth tokens, pairing records, and conversation history.

• Audit. Run the security audit and make sure it comes back clean:

  railway ssh --service openclaw -- openclaw security audit

Then keep going with the rest of the course: add a channel and choose a DM policy, and tighten what the agent is allowed to run.

How the Tailscale Service Works

You don’t need to touch any of this to use the template, but it explains the behavior. The tailscale service builds from a small Dockerfile on top of the official Tailscale image, plus a Serve config that is baked in because Railway can’t mount files into a service:

{
  "TCP": {
    "443": {
      "TCPForward": "openclaw.railway.internal:8080",
      "TerminateTLS": "${TS_CERT_DOMAIN}"
    },
    "18789": {
      "TCPForward": "openclaw.railway.internal:8080"
    }
  }
}

Two consequences follow from that file:

• The Gateway service must be named openclaw. Its private hostname is hardcoded here.
• Port 443 terminates TLS at Tailscale, using your tailnet’s certificate. Port 18789 is the plaintext fallback. Both go to the same Gateway port.

The environment variables that matter:

Because the node’s identity lives on a volume, redeploys and restarts keep the same machine, address, and certificate.

Who Knows Who You Are?

When you connect from your Mac, your phone, and a browser, it’s natural to assume something knows they’re all you. Three different layers each know something different, and it’s worth keeping them straight.

Tailscale is the only layer that knows your devices belong to the same person. Every device on your tailnet has an identity tied to your login, and your access policy ("src": ["you@example.com"]) is checked against it. That’s how your Mac, phone, and laptop all count as “you,” and how a stranger’s device gets turned away before it ever touches the Gateway.

The Gateway doesn’t get that information. The tailscale service forwards raw TCP, which passes bytes through without adding any identity headers, and OpenClaw’s own Tailscale integration is off. In fact, the Gateway rejects requests that arrive with a Tailscale-User-Login header, because it has no way to verify one. From its point of view, every client is the Tailscale service’s private IP address. (That’s the same reason failed logins are rate limited together, and why its logs can’t tell your devices apart.)

So the Gateway builds its own picture of you from two things:

• The token is a shared secret. Every client presents the same one. It proves the client knows the secret and nothing else.
• Device pairing gives each client its own key pair. A new device stays pending until you approve it, and a connection without a paired device identity gets no operator scopes. A client with only the token can call health but not read the configuration.

The result is that OpenClaw sees your Mac app, each browser profile, and your phone as separate devices. They’re approved separately and revoked separately, and nothing links them together except that they all know the token. A private browser window forgets its device identity, so it needs approval every time.

That has a few practical consequences:

• The token is the thing that “is you.” Keep it sealed in Railway, and rotate it if it leaks.

• Revoke by device. To cut off a lost phone without touching your other devices, revoke just that one:

  railway ssh --service openclaw -- openclaw devices list
  railway ssh --service openclaw -- openclaw devices revoke --device <id> --role <role>

• For “which device did that?”, check Tailscale’s logs. The Gateway’s logs only show the shared IP.

The previous lesson’s setup works differently. When Tailscale runs on the Gateway host, OpenClaw can ask the local Tailscale daemon who is connecting and use that for Control UI sign-in. Railway can’t do that, which is the trade you make for keeping the Gateway off the public internet there.

Trade-offs to Know About

• Everyone shares one IP. The Gateway sees every tailnet client as the Tailscale service’s private address. Its logs won’t show which device connected (Tailscale’s logs will), and failed-login rate limiting is shared. Ten bad attempts in a minute lock out all your devices for five minutes.
• Anyone with Railway access has a root shell. Project members can railway ssh into the containers. The volume holds tokens and history, so limit who is on the project.
• Never enable Funnel for this node. The template’s tests fail if the Serve config enables Funnel or switches to HTTP proxying.

Troubleshooting

Start with the logs:

railway logs --service tailscale
railway logs --service openclaw

If Tailscale Is Down

Railway’s SSH gateway makes a break-glass fallback. It needs a Railway account on the project and a registered SSH key. Copy the openclaw service’s instance ID (press ⌘K in the dashboard and choose Copy Service Instance ID), then forward the Gateway port:

ssh -N -L 18789:127.0.0.1:8080 <service-instance-id>@ssh.railway.com

Point the app at ws://127.0.0.1:18789 with the Gateway token. Through the tunnel the Gateway sees a loopback client, so pairing is approved automatically. That’s no more access than the tunnel already gave you, since whoever can open it already has a root shell in the container.
